Model ZX32/ZY32-2 screw oil press is the biggest national continuous pre-press and one-time pressing equipment and suitable for the oil plant to process the seeds containing more oil such as peanut kernels, cottonseed kernels, safflower seed and sunflower kernels.Such equipment has the following advantages: high processing ability; low power consumption; low operation expense, defatted cake being loose but not crushed, easy to sovent penetration; low residual oil rate. The press is the ideal oil press equipment both for large size and middle size oil plant.

            Power Matching: ZX32： 90KW  ZY32：110KW

Overall Dimensions (length × width × height):   4100x2270×3850MM

   Net Weight:   11500KG

          Main technical parameters

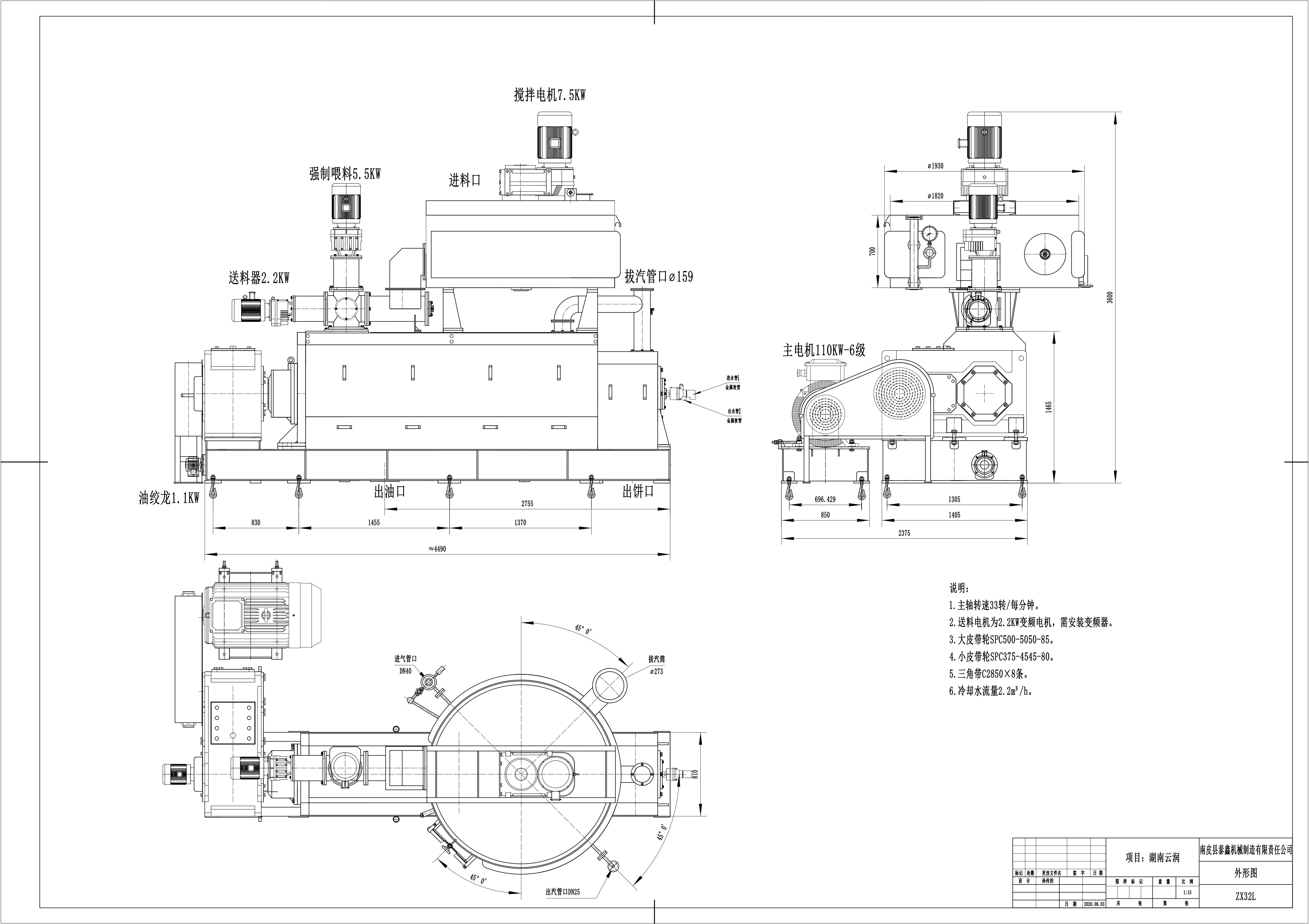

External drawing

Parts drawing
